Individual StrataCellHydroCAD Supports
CityGreen StrataCell

HydroCAD provides direct support for the StrataCell, manufactured by CityGreen.  This allows the StrataCell to be easily used within any HydroCAD model for stormwater storage, detention, or infiltration.

The StrataCell features a unique interlocking design, which allows the cells to be connected and stacked to match the specific size requirements of each project.  The StrataCell is available in high strength and lower strength versions depending on load requirements.

Support for the StrataCell was added in HydroCAD-10 build 6. If you have an earlier 10.0 build, you can get the latest build at no charge by using your previous HydroCAD 10 download details.  If you have an earlier version of HydroCAD, you must obtain a program update in order to model the StrataCell.

How chambers are modeled

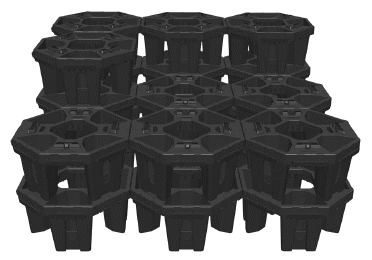

StrataCells interlock and stack as neededIn a HydroCAD model, stormwater chambers typically appear as part of the storage definition for a "pond".  In the simplest case, HydroCAD calculates the available storage for use with other calculations.  But more often, it is used to generate a complete inflow or runoff hydrograph and route the water through the pond.  The resulting analysis indicates the water levels attained throughout the rainfall event, as well as any discharge that may occur through outlet devices, or infiltration into the surrounding ground.

Flexible storage options

Each pond may include an unlimited number of storage definitions as required to describe its overall storage characteristics.  This makes it easy to model complex storage arrangements, such as a combination of multiple chambers, pipe storage, catch basins, or other contributing volumes.  The model can also include overflow storage, such as a parking lot, which may be used to detain larger rainfall events.

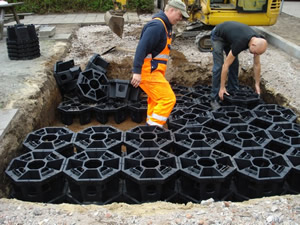

Typical StrataCell InstallationHydroCAD can also embed (bury) chambers in a bed of crushed stone, and automatically calculate the combined storage of the chamber and stone voids at any water surface elevation.  This makes it easy to determine the storage for virtually any configuration of storage chambers, without resorting to any manual calculations.

Modeling the CityGreen StrataCell

Setting up a pond to use StrataCell chambers is a simple process:  Just pick the desired "CityGreen StrataCell" from the drop-down list, and specify the total number of chambers.  Since the StrataCell is often used in a stacked configuration, separate definitions are provided for installations up to eight units high.  (Higher installations can be modeled with a custom chamber definition.)

HydroCAD also provides an automated chamber wizard for easy chamber layout, modeling, and cost estimating.  Just set the number of chambers, and the wizard automatically sizes the stone bed and creates the necessary storage definitions.  The composite storage for the chambers and stone voids is calculated automatically.

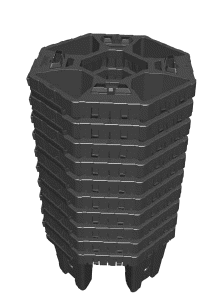

StrataCell stacks compactly for shipmentDetailed StrataCell information

The StrataCell definitions included with HydroCAD are intended to model an empty StrataCell used for stormwater retention or detention.  These definitions should not be used to model a StrataCell installation that is filled with growth media (such as a tree pit) since these applications do not behave like an open pond.

The StrataCell is available in a "High Strength" and "Lower Strength" version, depending on load requirements.  Since both versions are exactly the same size, they can be modeling using the same HydroCAD chamber definitions.

For detailed product specifications and design information, please visit the CityGreen StrataCell page.
